Micropipettes: Essential tools for accurate microvolume fluid transfers in the laboratory

The micropipettor is a cornerstone instrument in modern biological and chemical laboratories, designed specifically for the precise transfer of very small volumes of liquid from 0.5 µl to 5000 µl. Used worldwide, this instrument is indispensable for experiments that require precise measurements, such as cell culture handling, DNA and protein analysis, and biochemical analyses. Micropipettes rely on air displacement technologywhere air is displaced from the pipette shaft to create a vacuum that draws liquid into a disposable tip. With a little practice, even first-time users can achieve high accuracy and consistency in microvolume fluid transfers.

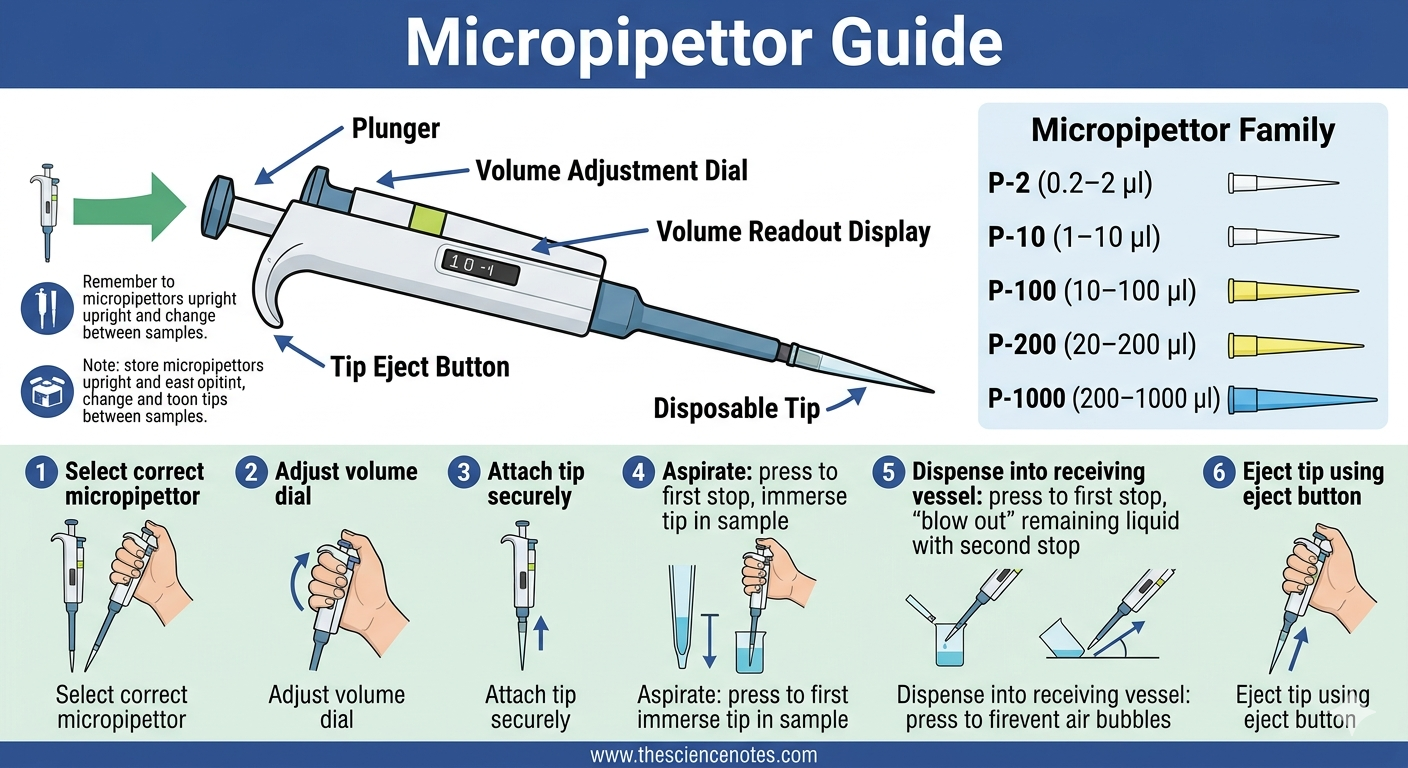

Components and functionality of micropipettes

Micropipettes share a similar design across different models, with essential components enabling precision aspiration and dispensing of liquid samples:

• Piston: Placed at the top of the micropipette, the piston controls the uptake and release of liquid. Pressing the piston to specific stops enables air displacement and fluid transfer.

• Volume adjustment dial: This dial allows the user to select the exact volume to be transferred, ensuring accurate measurements within the range of the instrument.

• Volume reading screen: Numbers on the display indicate the selected volume in microliters, usually read from top to bottom. Different micropipettor models reflect volume figures differently, and represent different orders of magnitude.

• One-time tip: Pipette tips are attached to the lower end of the micropipettor and come in sizes corresponding to the volume range of the micropipettor.

• Tip release button and shaft: These mechanisms allow safe and convenient disposal of used tips to prevent cross-contamination.

Micropipettor family: range and sizes

Micropipettes come in a “family” of different models to cover a wide range of volumes. For example:

• P-2: Transfers 0.2–2 μl, ideal for extremely small sample volumes.

• P-10: Transfers 0.5–10 μl for slightly larger microvolume.

• P-100: Handles 10–100 μl, typically used in molecular biology assays.

• P-200: Transfers 20–200 μl, often used in cell culture and reagent handling.

• P-1000: Transfers 200–1000 μl, suitable for larger sample volumes.

• P-5000: For volumes up to 5000 μl in specialized applications.

The color-coded tips simplify identification: white tips for 0.5–2.5 μl, yellow tips for 1–200 μl, and blue tips for 200–1000 μl. Correct tip selection is critical to experimental accuracy.

Step-by-step micropipettor operation

Follow these steps to achieve precise microvolume transfers:

1. Choose the right micropipettor based on the required volume range. Using the right instrument ensures accurate results.

2. Adjust the volume dial to your target volume. Turn counter-clockwise to increase the volume and clockwise to decrease it. Give the desired volume a little and back off slowly for optimal precision.

3. Attach the appropriate tip to the micropipette, making sure it is firmly seated.

4. Hold the micropipette uprightwith the narrow end in the palm and the overhang resting on the index finger.

5. Depress the piston halfway to the first stop to displace air from the tip.

6. Lower the tip 1–3 mm into the liquid sampleand release the plunger slowly. Wait one second to allow the liquid to fill the tip completely.

7. Inspect the tip for air bubbles, which can compromise volume accuracy.

8. Dispense the liquid by holding the micropipette at a 10–45° angle to the recipient vessel, press to the first stop and then all the way to the second stop for “blow out”.

9. Release the tip safely into the appropriate socket using the tip’s release button.

Consistent piston pressure, upright storage and careful handling ensure that the micropipettor remains accurate and functional over time. Always change tips between transfers to prevent cross-contamination.

Common laboratory applications

Micropipettes are versatile instruments used for various laboratory applications:

• Cell culture: Transfer of precise volumes of cell suspensions to culture plates for assays and experiments.

• Analytical techniques: Loading samples in DNA gelsmicroplate readers or other molecular biology instruments.

• Tissue dissociation: Mechanical disruption of tissue to create single cell suspensions for downstream applications.

• High-throughput assays: User multichannel pipettes to efficiently load entire rows of 96-well plates.

• Serial transfers: Repeater pipettes allow repeated aliquots from a single aspiration, ideal for repetitive experiments.

Micropipettes come in various formats, such as air displacement, positive displacement, multichannel and repeater pipetteseach optimized for specific laboratory needs.

Tips for accuracy and maintenance

• Never exceed the volume range of the pipette; this may damage the internal mechanism.

• Change tips between samples to avoid cross-contamination.

• Maintain a smooth piston movement to ensure consistent results.

• Store micropipettes upright when not in use.

• Calibrate micropipettes regularly to maintain reliability in experimental results.

Conclusion

The micropipettor is an important laboratory tool that provides unparalleled precision and control when handling microvolumes of liquid. By understanding the components, practicing the right technique, and choosing the right model and tips, researchers can achieve accurate and reproducible results in a wide range of experiments. From molecular biology to cell culture, micropipettes are essential to scientific discovery and laboratory efficiency.
